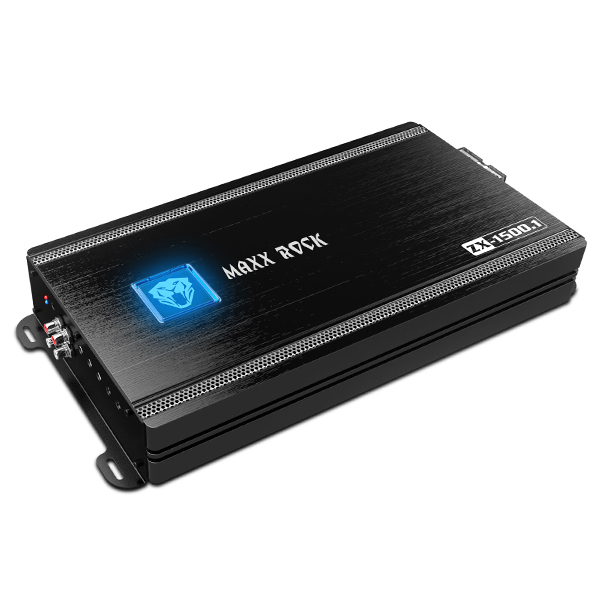

ZX-1500.1
Features：
· 1 Ohm load stable.
· Double side FR-4 PCB,high quality SMD components.
· Full MOSFET circuit design.
· Subsonic adjustable.
· Low pass filter adjustable
· Bass boost frequency and level adjustable.
· Phase adjustable.
· Overload,short circuit,thermal,low voltage protection.
· Easy bridging operation.
· Remote bass level control.
Basic Info
| RMS @ 1 Ohm | 1418W |
| RMS @ 2 Ohm | 946W |
| RMS @ 4 Ohm | 545W |
| Frequency Response | 8Hz ~ 180Hz |
| S/N Ratio | >80 dB |
| THD | ≦0.5% |
| Input Sensitivity Level | 0.2V ~ 6V |
| LPF | 40Hz ~ 180Hz |
| Subsonic Filter | 5Hz ~ 50Hz |
| Dimension(L×W×H) | 352×208×57 mm |
