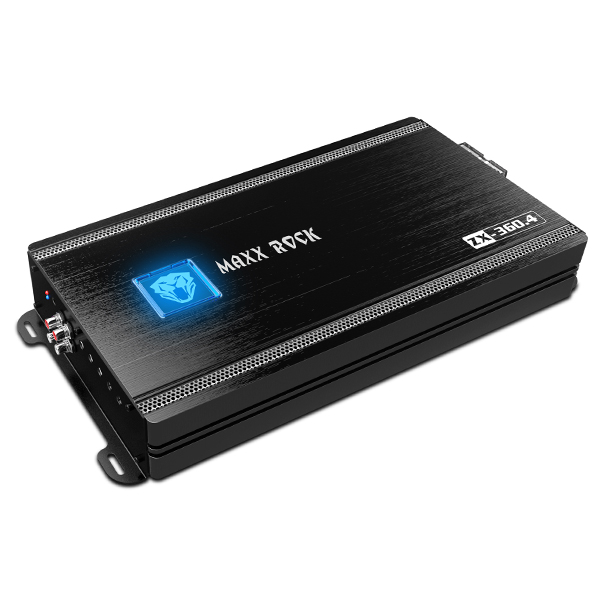

ZX-360.4
Features：
· 2Ohm load stable.
· Double side FR-4 PCB,high quality SMD components.
· Full MOSFET circuit design.
· High pass filter adjustable.
· Low pass filter adjustable.
· Bass boost frequency and level adjustable.
· Overload,short circuit,thermal,low voltage protection.
· Remote bass level control(with remote bass knob).
· Easy bridging operation.
Basic Info
| RMS @ 4 Ohm | 4*156W |
| RMS @ 2 Ohm | 4*220W |
| BTL(Birdge Power) | 2*440W |
| S/N Ratio | >80 dB |
| THD | ≦0.5% |
| Input Sensitivity Level | 0.2V ~ 6V |
| LPF | 50Hz ~ 500kHz |
| HPF | 50Hz ~ 1.2kHz |
| Dimension(L×W×H) | 376.5×208×57 mm |
