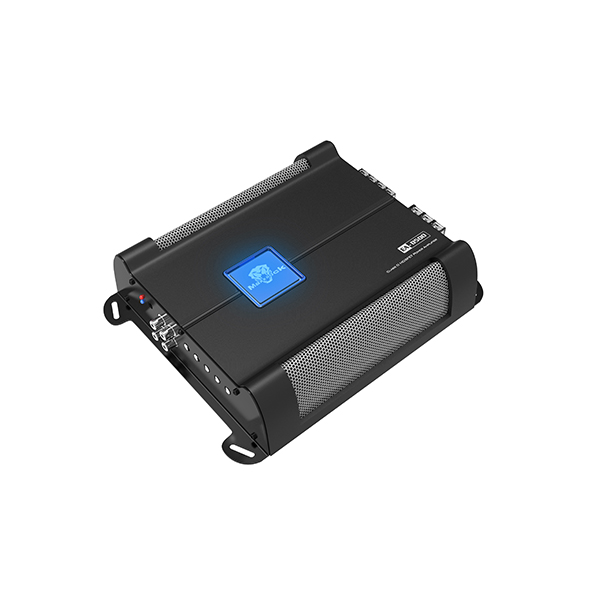

EA-D500
Features：
· 1 Ohm load stable.
· Double side FR-4 PCB,high quality DIP components.
· Full MOSFET circuit design.
· Adjustable subsonic filter.
· Adjustable low pass filter.
· Adjustable bass boost frequency and level
· Overload, short circuit, thermal, low voltage protection.
· Remote bass level control(with remote bass knob)
· Easy bridging operation.
Basic Info
| RMS @ 1 Ohm | 552W |
| RMS @ 2 Ohm | 375W |
| RMS @ 4 Ohm | 248W |
| Frequency Response | 8Hz ~ 180Hz |
| S/N Ratio | >80dB |
| THD | ≦0.5% |
| Input Level | 0.2V ~ 5V |
| LPF | 40Hz - 180Hz |
| Subsonic Filter | 5Hz - 50Hz |
| Dimension(L×W×H) | 223.5×211×64.5 mm |
