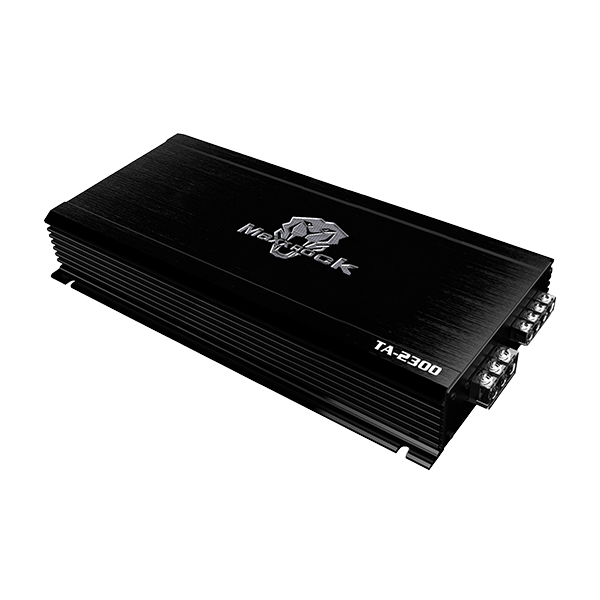

TA-2300
Features：
· 2 ohm load stable.
· Double sideFR-4PCB,high quality SMD components.
· Full MOSFET circuit design.
· Adjustable low pass filter.
· Adjustable high pass filter.
· Adjustable bass boost level.
· Overload, short circuit, thermal,low voltage protection.
· With remote Bass knob.
· Easy bridging Operation.
Basic Info
| RMS @ 4 Ohm | 289W*2 |
| RMS @ 2 Ohm | 486W*2 |
| Maximum Power Output | 960W*1 |
| S/N Ratio | >80 dB |
| THD | ≦0.5% |
| Input Sensitivity Level | 0.2V - 6V |
| LPF | 50Hz - 500Hz |
| HPF | 50Hz - 1.2kHz |
| Dimension(L×W×H) | 461.6×185×58 mm |
