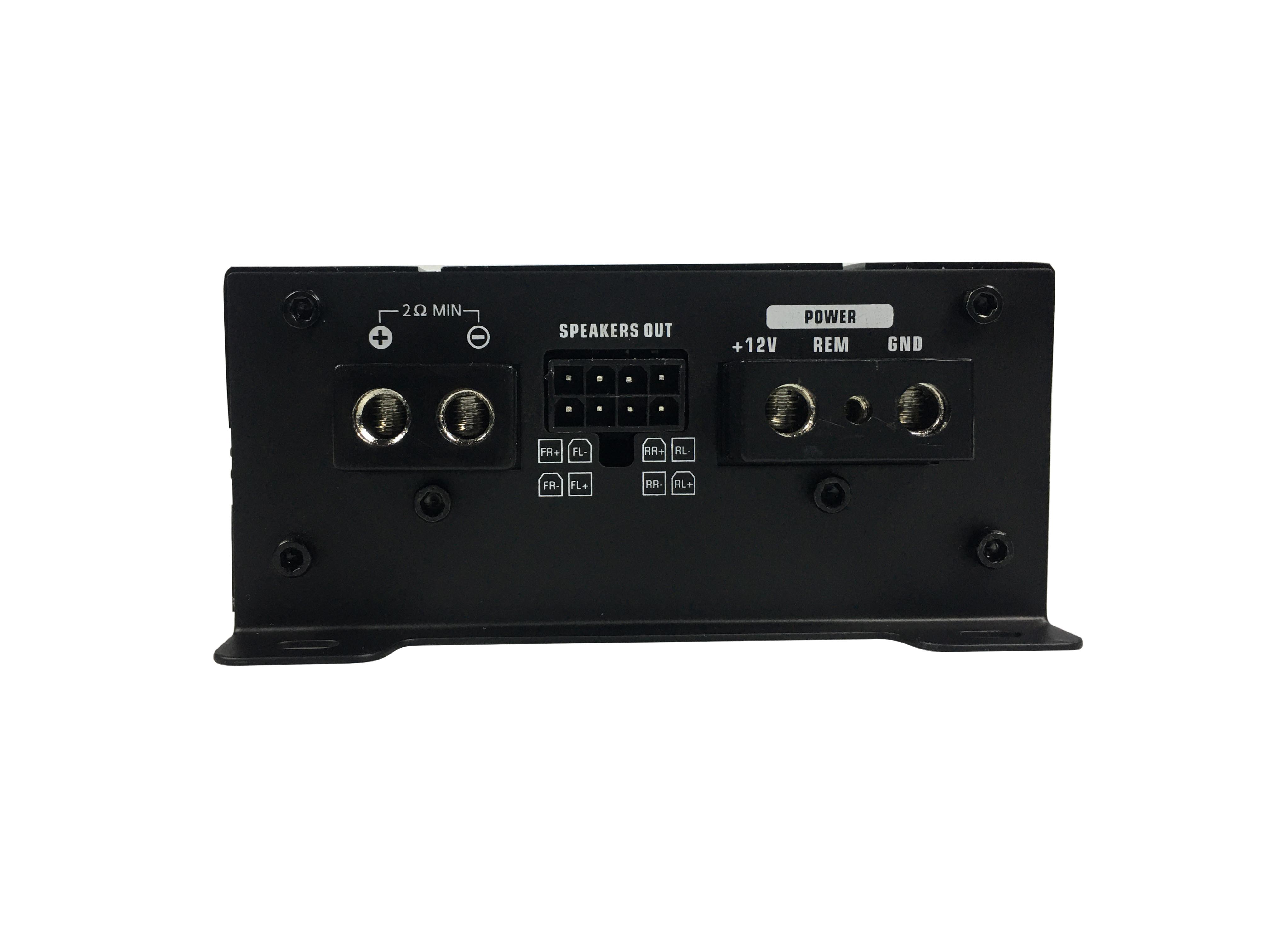

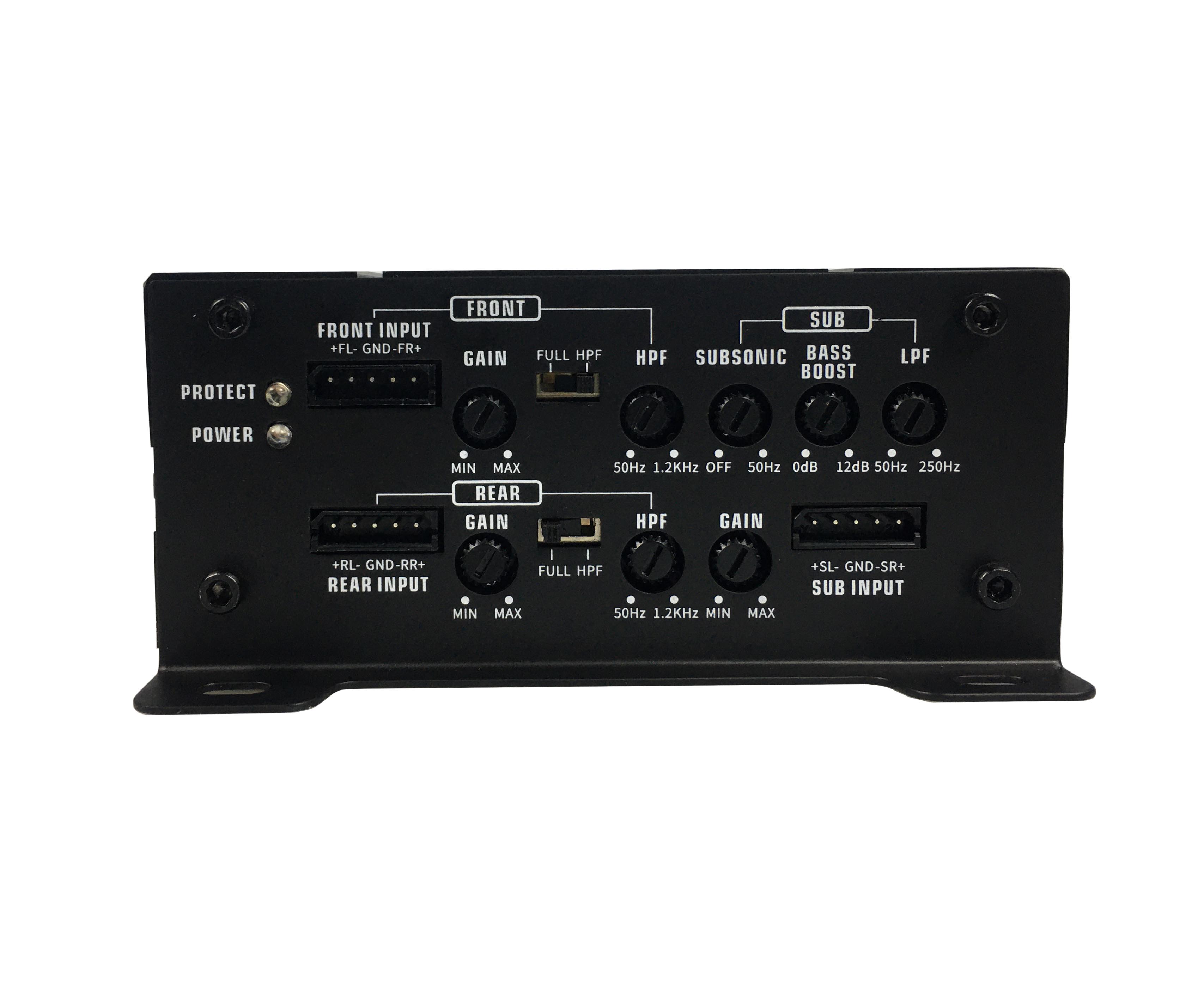

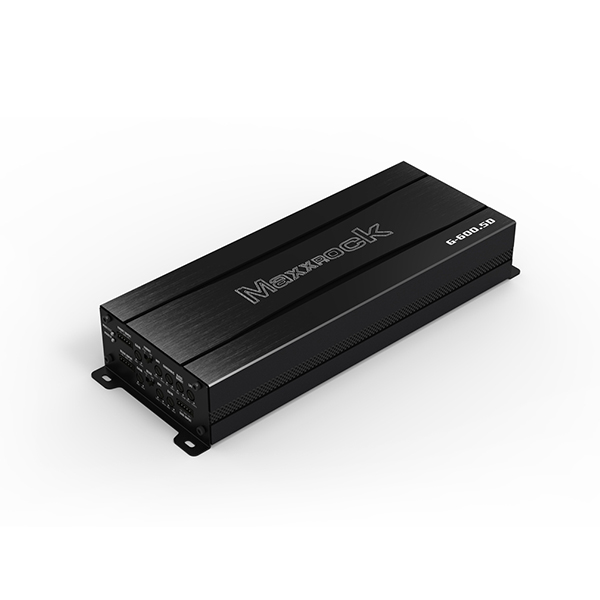

G-600.5D
Features：
· 2 Ohm load stable.
· 4 Layers FR-4PCB，highest quality SMD components.
· Full MOSFET circuit design.
· Fully adjustable low pass filter.
· Fully adjustable high pass filter.
· Bass boost Level adjustment.
· Short circuit,Thermal,Low voltage protection.
Basic Info
| RMS @ 4 Ohm | 80 W × 4+225W |
| RMS @ 2 Ohm | 112 W × 4+380W |
| Frequency Response | 20Hz - 20kHz |
| S/N Ratio | > 80 dB |
| THD | ≤ 0.5% |
| Input Sensitivity Level | 0.2V - 6 V |
| LPF | 50Hz - 250Hz |
| HPF | 50Hz - 1.2kHz |
| Dimension(L×W×H) | 263 × 110 × 46 mm |
