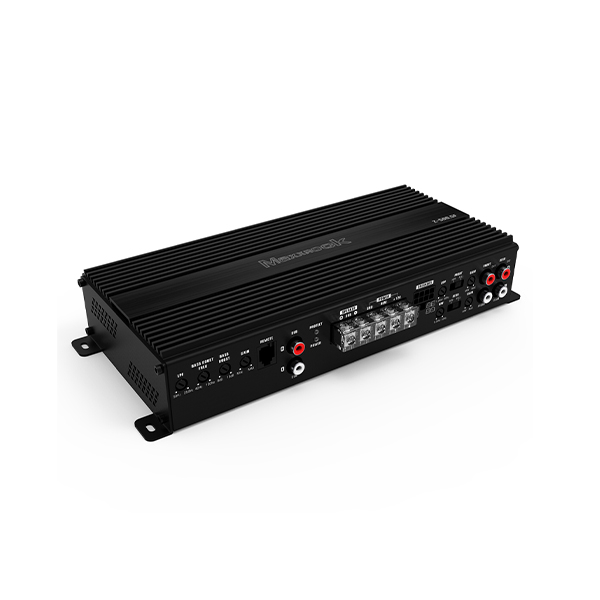

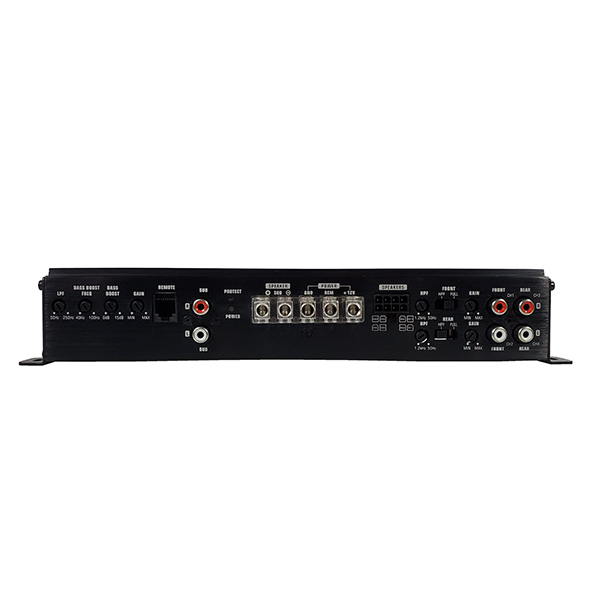

Z-500.5F
Features：
·2 Ohm load stable.
·Double side FR-4 PCB,high quality SMT components.
. Full MOSFET circuit design.
·Adjustable low pass filter.
. Adjustable bass boost level.
.Overload, short circuit, thermal, low voltage protection.
. Easy bridging operation.
Basic Info
| RMS @ 4 Ohm | 60W × 4 + 203W |
| RMS @ 2 Ohm | 60W × 4 + 364W |
| BTL(Bridge Power) | 60W × 4 + 576W |
| Frequency Response | 20Hz - 20kHz |
| S/N Ratio | > 80 dB |
| THD | ≤ 0.5% |
| Input Sensitivity Level | 0.2V - 6V |
| LPF | 50Hz - 250Hz |
| HPF | 50Hz - 1.2kHz |
| Subsonic Filter | N/A |
| Dimension(L×W×H) | 257×120.5×48 mm |
