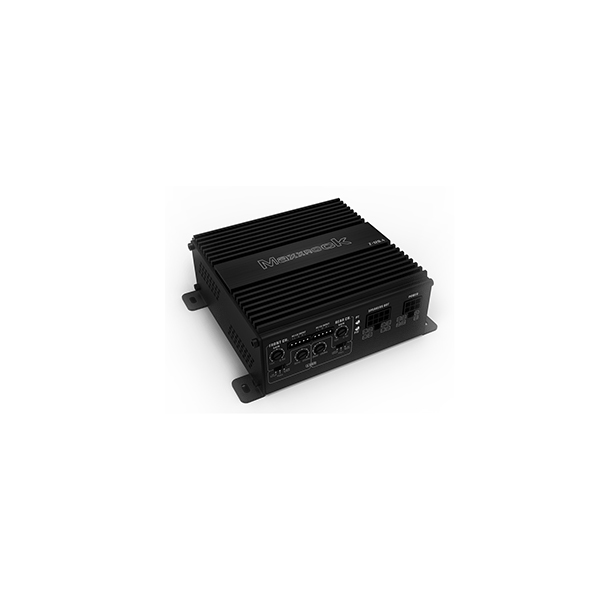

Z-120.4F
Features:
· 2 Ohm load stable.
· Double side FR-4 PCB,high quality SMT components.
· Full MOSFET circuit design.
· Adjustable low pass filter.
· Adjustable bass boost level.
· Overload, short circuit, thermal, low voltage protection.
· Easy bridging operation.
Basic Info
| RMS @ 4 Ohm | 60W×4 |
| RMS @ 2 Ohm | 75W×4 |
| BTL(Bridge Power) | 140W×2 |
| Frequency Response | 20Hz - 20kHz |
| S/N Ratio | > 80 dB |
| THD | ≤ 0.5% |
| Input Sensitivity Level | 0.5V - 12V |
| LPF | 35Hz - 250Hz |
| HPF | 35Hz - 250Hz |
| Subsonic Filter | N/A |
| Dimension(L×W×H) | 117×120.5×48 mm |
