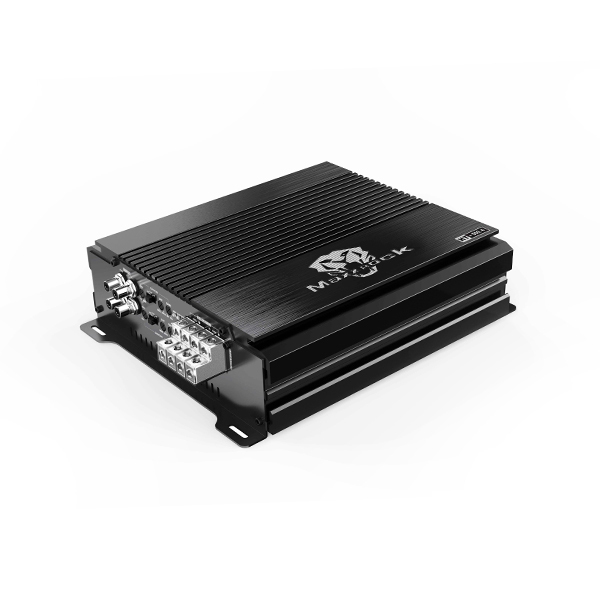

HT-500.4
Features：
· 1 Ohm load stable.
· Double side FR-4 PCB,high quality SMD components.
· Full MOSFET circuit design.
· Adjustable subsonic filter.
· Adjustable low pass filter.
· Adjustable bass boost frequency and level
· Overload, short circuit, thermal, low voltage protection.
· Easy bridging operation.
Basic Info
| RMS @ 1 Ohm | 625W*4 |
| RMS @ 2 Ohm | 420W*4 |
| RMS @ 4 Ohm | 240W*4 |
| Bridge Power | 1250W*2 |
| Frequency Response | 20Hz - 20kHz |
| S/N Ratio | >50 dB |
| THD | ≤0.5% |
| Input Sensitivity Level | 0.2V~ 6V |
| LPF | 50Hz ~ 5kHz |
| HPF | 15Hz ~ 5kHz |
| Bass Boost Level | 0dB ~ 12dB |
| Dimension(L×W×H) | 236×228×68 mm |
