FX-12D4

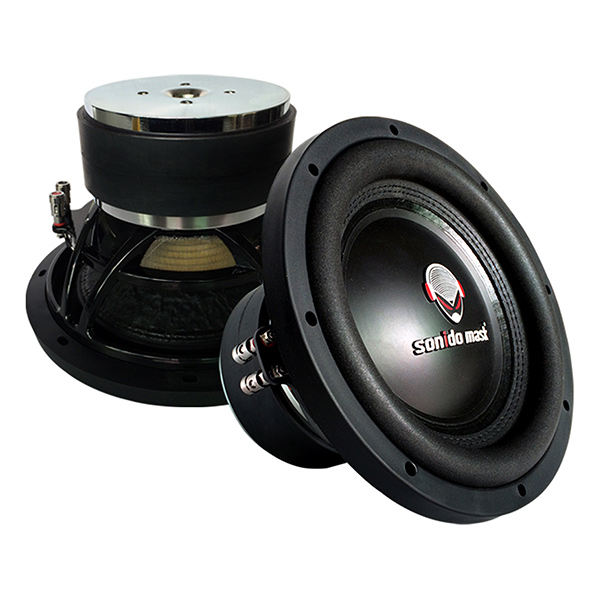

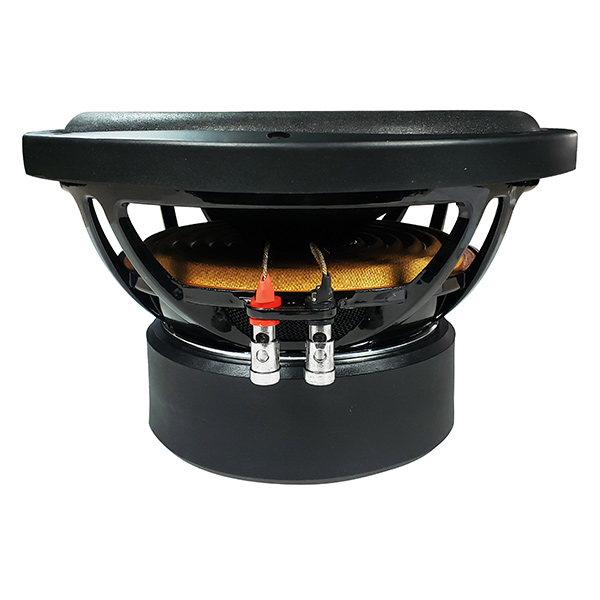

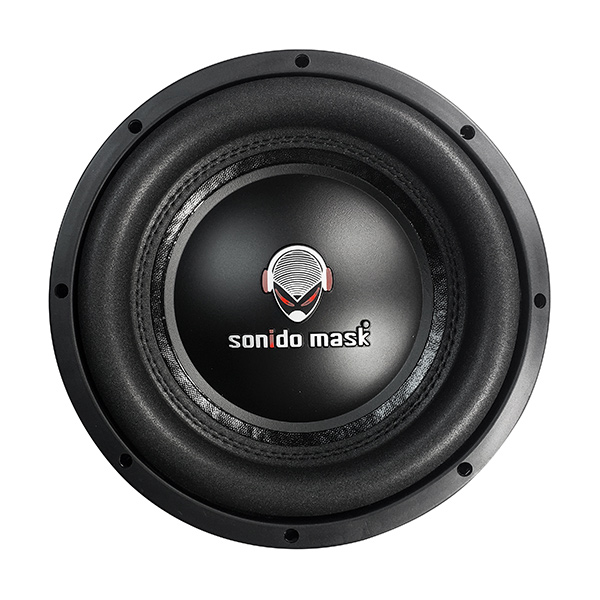

FX-12D4 12"Subwoofer
.(600 Watts RMS Sealed Enclosure)

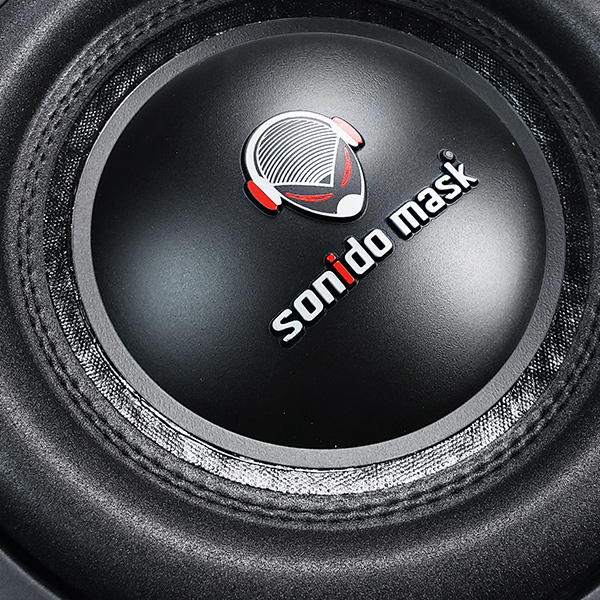

.12”custom tooled high efficiency non pressed paper cone with foam surround
.Dual 2 premium high temperature voice coil
.1200 Watts Peak/600 Watts RMS
. Frequency Response:25 Hz-2k Hz
.Sensitivity:86 dB(1 Watt/1 Meter)
. Impedance:Dual 4 Ohm
.Mounting Depth:6.50 Inch(165 mm)
Basic Info
|
FX-12D4 Speaker Impedance |
table |
2 ohms |
8 ohms |
|
Free Air Resonance |
Fs |
35 |
37 |
|
Total Q Driver @ Fs including all resistance% |
Qts |
0.550 |
0.500 |
|
Q of the Driver@ Fs including non electronical resistance only |
Qms |
4.440 |
4.351 |
|
Q of the Driver @Fs including electronical resistance only |
Qes |
0.575 | 0.565 |
|
The Driver% compliance expressed as an equivalent |
Vas |
32.00L | 31.01L |
|
Volume of all (cubic Ft) |
|
||
|
The Driver%s linear displacement (inches) |
Xmax | 0.31 | 0.31 |
|
The Dc resistance of the driver% twin voice coils &ohms |
Re | 2.0 | 8.0 |
|
Thermal Power rating of the Driver(RMS/Peak) |
Pe |
600W/1200W |
600W/1200W |
|
The Driver% sensitivity(dB) |
Sens |
86 |
86 |
