ZX-12D2

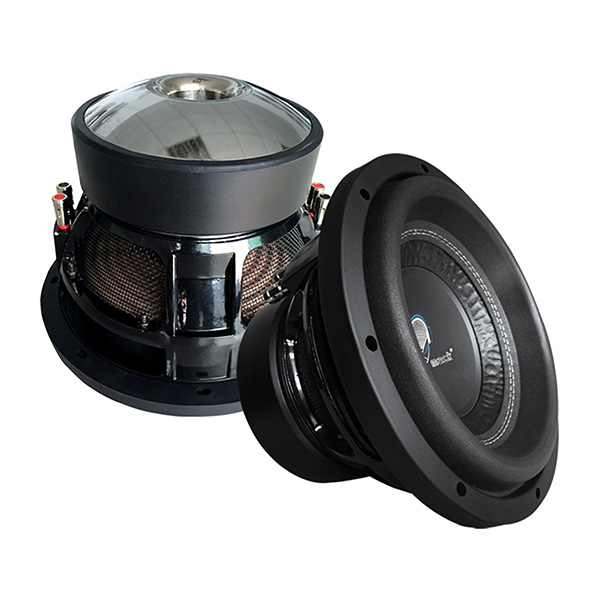

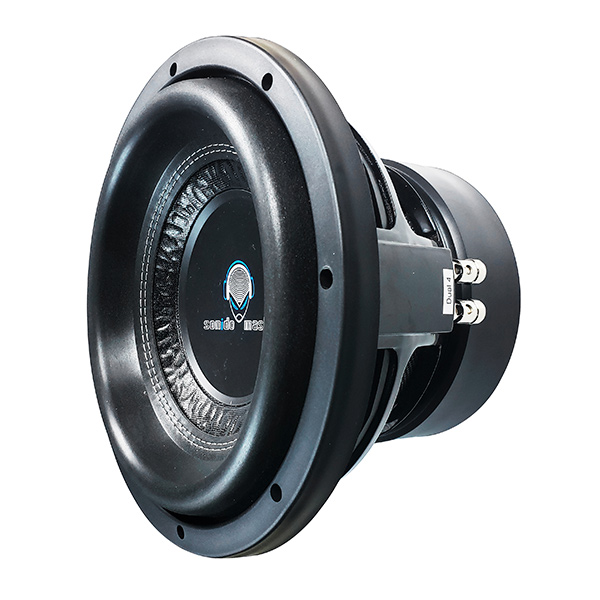

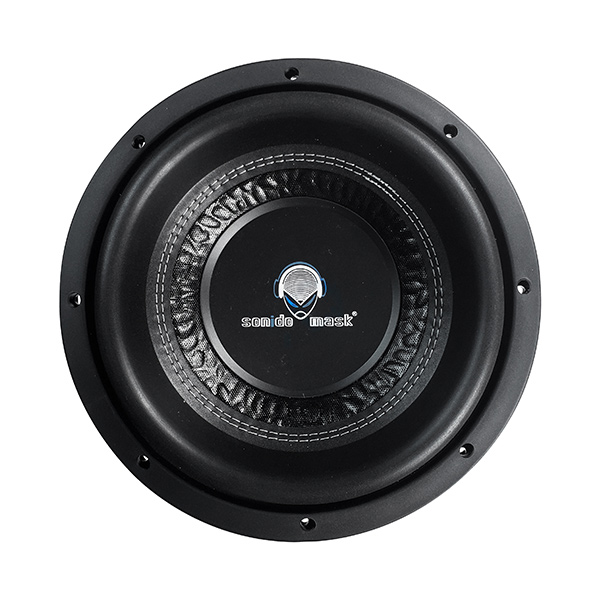

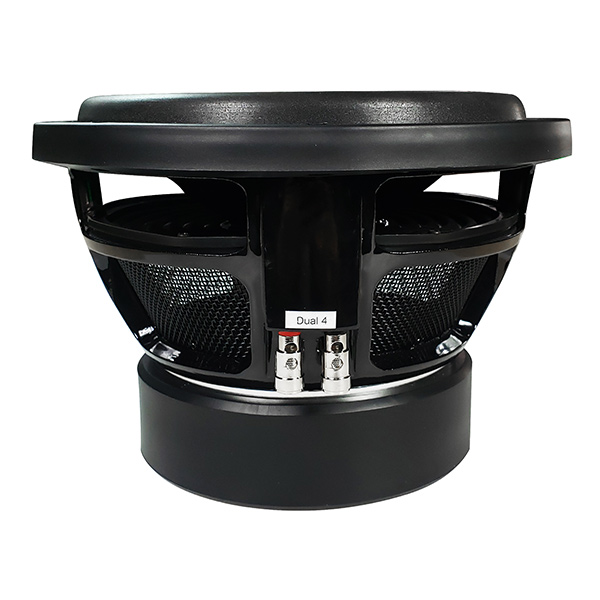

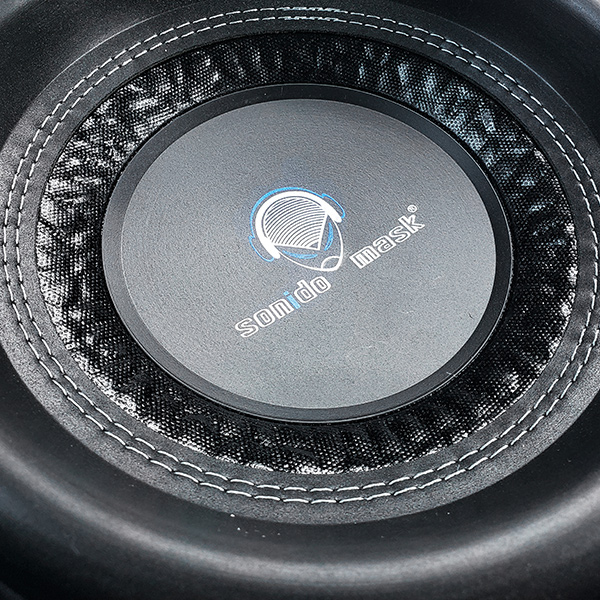

ZX-12D2 12"Subwoofer
(1000Watts RMS Sealed Enclosure)
.12”custom tooled high efficiency non pressed paper cone with foam surround
.Heavy aluminum die-cast basket
.3" CCAW Voice coil
.3 x 65 oz magnet
.2000 Watts peak/1000 Watts RMS
.Impedance:Dual 2 ohm
.Sensitivity:89 dB(1 Watt/1 Meter)
.Mounting Depth: 8.2 Inch( 208.5 mm)
Basic Info
|
ZX-12D2 Speaker Impedance |
table |
1 ohms |
4 ohms |
|
Free Air Resonance |
Fs |
36.5 |
36.5 |
|
Total Q Driver @ Fs including all resistance% |
Qts |
0.384 |
0.393 |
|
Q of the Driver@ Fs including non electronical resistance only |
Qms |
4.20 |
4.421 |
|
Q of the Driver @Fs including electronical resistance only |
Qes |
0.423 | 0.433 |
|
The Driver% compliance expressed as an equivalent |
Vas |
45.4L | 45.4L |
|
Volume of all (cubic Ft) |
|
1.603 | 1.603 |
|
The Driver%s linear displacement (inches) |
Xmax | 22 | 22 |
|
The Dc resistance of the driver% twin voice coils &ohms |
Re | 0.95 | 3.8 |
|
Thermal Power rating of the Driver(RMS/Peak) |
Pe |
1000W/2000W |
1000W/2000W |
|
The Driver% sensitivity(dB) |
Sens |
89 |
89 |
