FX-12D2

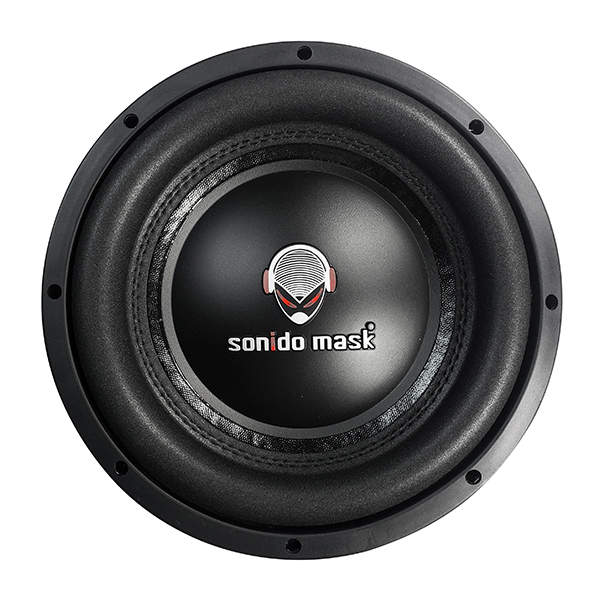

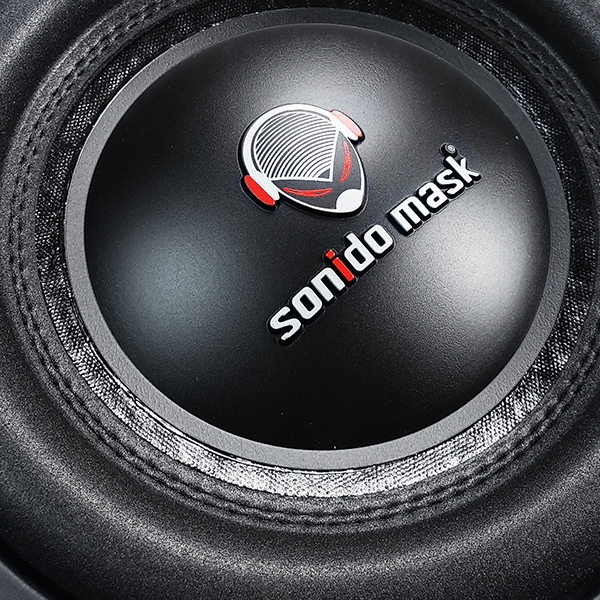

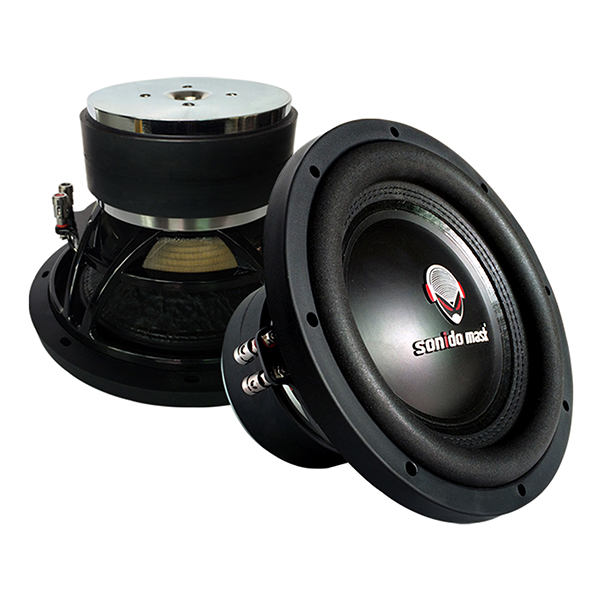

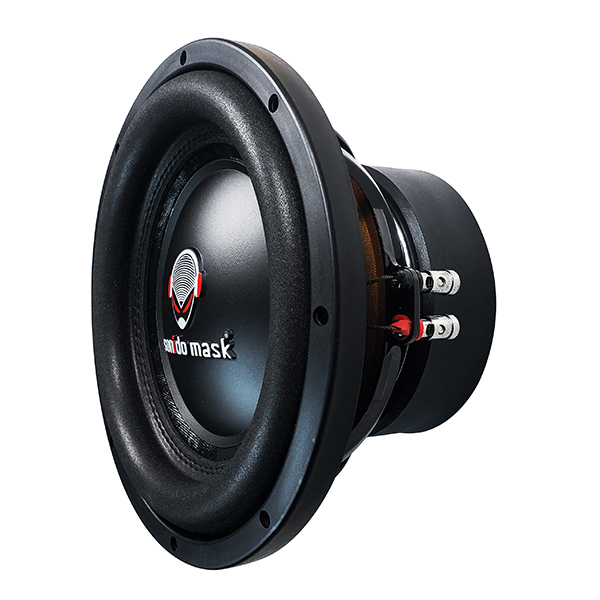

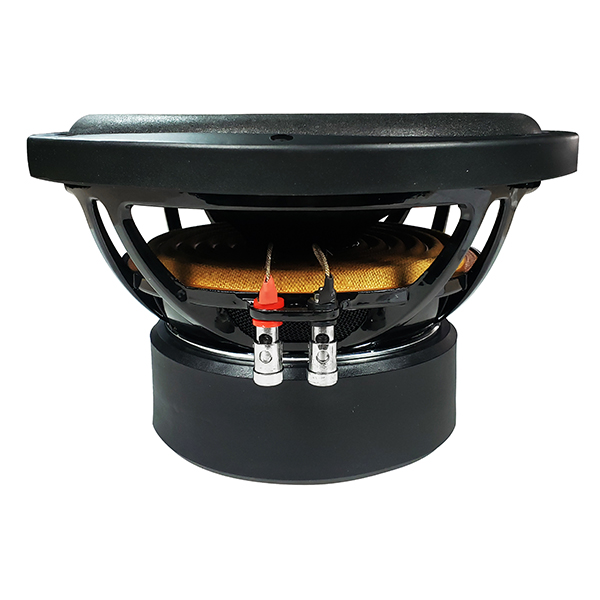

FX-12D2 12"Subwoofer
.(600 Watts RMS Sealed Enclosure)
.12”custom tooled high efficiency non pressed paper cone with foam surround
.Dual 2 premium high temperature voice coil
.1200 Watts Peak/600 Watts RMS
. Frequency Response:25 Hz-2k Hz
.Sensitivity:86 dB(1 Watt/1 Meter)
. Impedance:Dual 2 Ohm
.Mounting Depth:6.50 Inch(165 mm)
Basic Info
|
FX-12D2 Speaker Impedance |
table |
1 ohms |
4 ohms |
|
Free Air Resonance |
Fs |
36 |
36 |
|
Total Q Driver @ Fs including all resistance% |
Qts |
0.510 |
0.587 |
|
Q of the Driver@ Fs including non electronical resistance only |
Qms |
7.251 |
7.352 |
|
Q of the Driver @Fs including electronical resistance only |
Qes |
0.622 | 0.639 |
|
The Driver% compliance expressed as an equivalent |
Vas |
34.98L | 35.46L |
|
Volume of all (cubic Ft) |
|
||
|
The Driver%s linear displacement (inches) |
Xmax | 0.31 | 0.31 |
|
The Dc resistance of the driver% twin voice coils &ohms |
Re | 1.0 | 4.0 |
|
Thermal Power rating of the Driver(RMS/Peak) |
Pe |
600W/1200W |
600W/1200W |
|
The Driver% sensitivity(dB) |
Sens |
86 |
86 |
