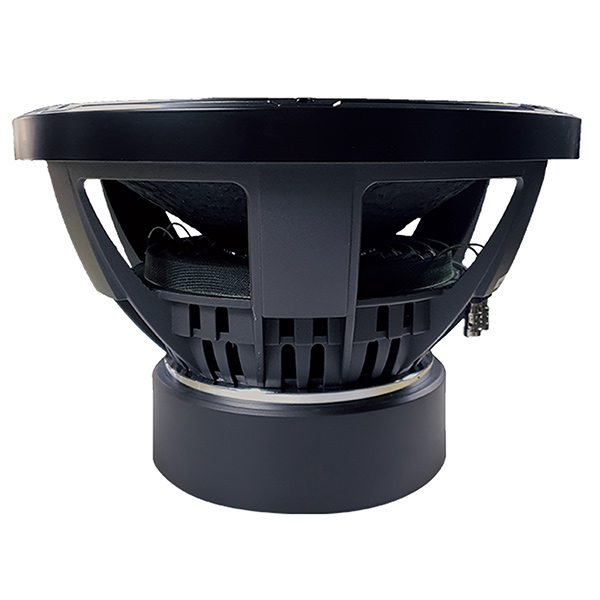

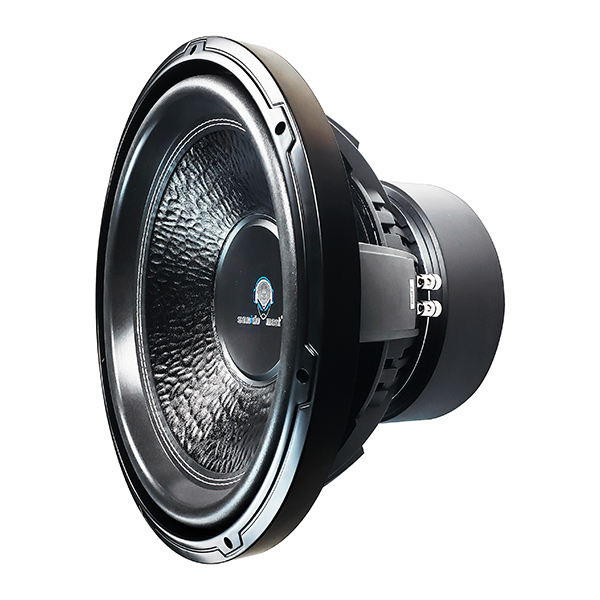

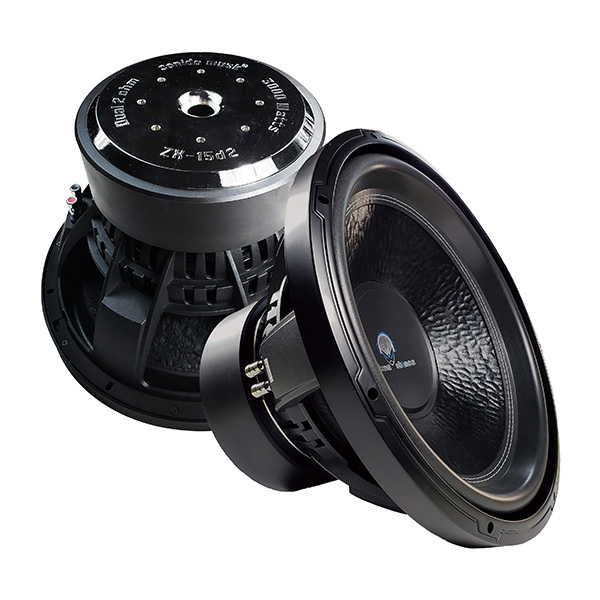

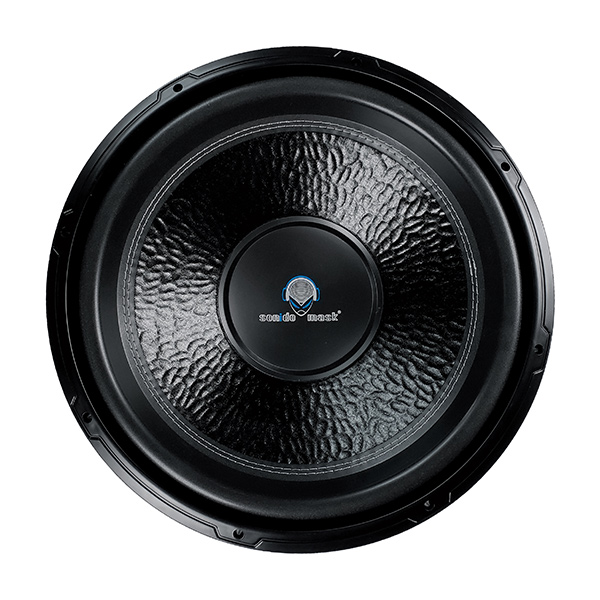

ZX-15D2
ZX-15D2 15"Subwoofer
(1500 Watts RMS Sealed Enclosure)
.15”custom tooled high efficiency non pressed paper cone with foam surround
.Heavy aluminum die-cast basket
.4" CCAW Voice coil
.3 x 100 oz magnet
.3000 Watts peak/1500 Watts RMS
.Impedance:Dual 2 ohm
.Sensitivity:89 dB(1 Watt/1 Meter)
.Mounting Depth: 9.9 Inch( 251.5 mm)
Basic Info
|
ZX-15D2 Speaker Impedance |
table |
1 ohms |
4 ohms |
|
Free Air Resonance |
Fs |
36.5 |
36.5 |
|
Total Q Driver @ Fs including all resistance% |
Qts |
0.417 |
0.417 |
|
Q of the Driver@ Fs including non electronical resistance only |
Qms |
4.573 |
4.589 |
|
Q of the Driver @Fs including electronical resistance only |
Qes |
0.458 | 0.459 |
|
The Driver% compliance expressed as an equivalent |
Vas |
36.7L | 36.7L |
|
Volume of all (cubic Ft) |
|
1.3 | 1.3 |
|
The Driver%s linear displacement (inches) |
Xmax | 25 | 25 |
|
The Dc resistance of the driver% twin voice coils &ohms |
Re | 1 | 4 |
|
Thermal Power rating of the Driver(RMS/Peak) |
Pe |
1500W/3000W |
1500W/3000W |
|
The Driver% sensitivity(dB) |
Sens |
89 |
89 |
